Pharmacy Spray Dryer
The spray dryer with PSD drying system is mainly used for material drying such as traditional Chinese medicine, chemical products and some other materials featuring bad heat sensitivity, bad drying performance, low softening point, strong moisture absorption.
This dryer adopts high speed centrifugal atomizer to disperse the material into fog, so that the material can fully contact with hot air. Thus the material will be dried instantly and you will get powder products.
Food drying
Sugar drying
Medical products drying
Chemical product drying etc.
| Type | PSD－12 | PSD－20 | PSD－25 | PSD－30 | PSD－35 | PSD－40 | PSD－45 | PSD－50 | PSD－55 | |
| Water evaporation quantity（kg/h） | 1-5 | 8-10 | 10-20 | 30-40 | 50-80 | 80-100 | 100-150 | 120-200 | 150-250 | |
| Material treating quantity（kg/h） | 3-5 | 10-20 | 20-30 | 30-80 | 50-120 | 80-150 | 120-200 | 160-280 | 220-380 | |
| Solid content of wet material（%） | 15-30 | |||||||||
| Finished product water content（%） | 3-5 | |||||||||
| Electric power（KW） | 21 | 36 | 45 | 63 | 126 | 180 | 216 | 270 | 360 | |
| Heating source | Steam （0.6～0.8MPa）＋electricity | |||||||||
| Product collection method | Cyclone separator＋wet dust collector | |||||||||
| Project control system | Project control system or human-computer interface PLC control; adopting Fuzzy technology to track exhaust temperature to realize variable air temperature to match material feeding quantity. | |||||||||
| Inlet air temperature（℃ ） | 120～220 | |||||||||
| Outlet air temperature（℃ ） | 80～100 | |||||||||
| Diameter of the drying room（mm） | 1200 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | |
| Outline dimension | L | 2500 | 3600 | 5000 | 6000 | 7500 | 8000 | 9000 | 10000 | 12000 |
| Outline dimension | W | 1800 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 |
| Outline dimension | H | 3000 | 5000 | 5800 | 7000 | 7500 | 8500 | 9000 | 10000 | 11500 |

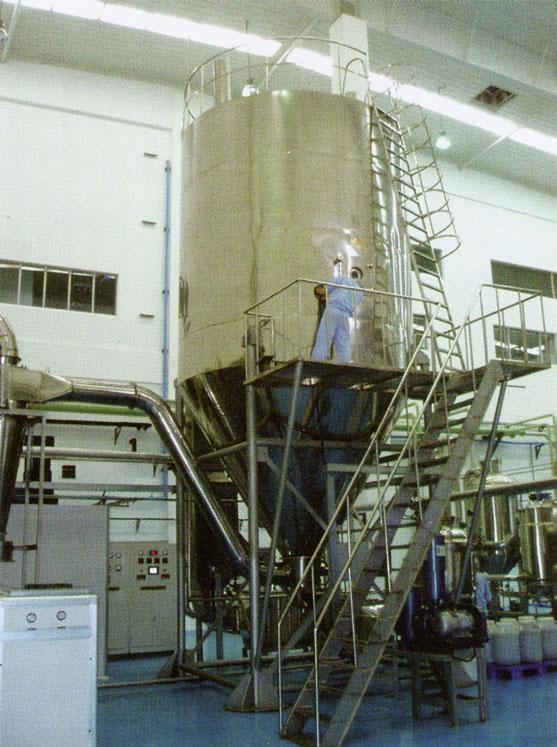

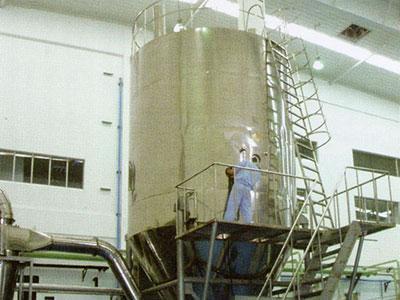

- The spray dryer with PSD drying system adopts fully enclosed appearance. All parts are made of stainless steel. This dryer is equipped with 3-stage purification plant. The filtering finished air can meet 100K cleanliness standard.
- The dryer tower is equipped with wall cooling device so that the wall temperature can be ＜80℃. So there will be no material coking when the material is resting on the wall. The powder collection rate can be up to 95% without phenomenon of material mixing and sticking on the wall.

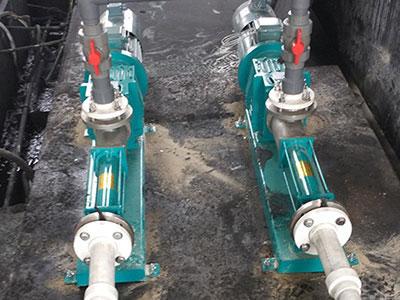

- Material feeding pump
NETZSCH screw pump imported from Germany - Atomizer

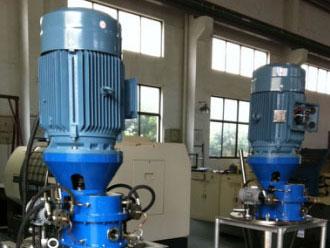

rotary atomizer

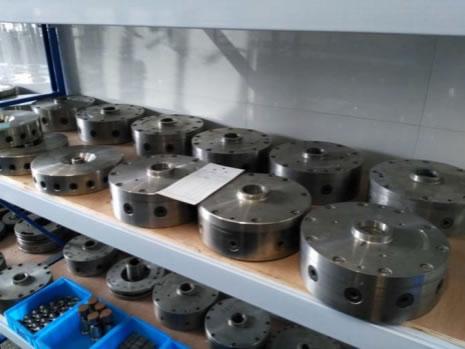

Centrifugal atomizing disc of various specifications
Air distributor: it is installed at the top of the tower so that it can be used to control the air flow of inside the drying tower.

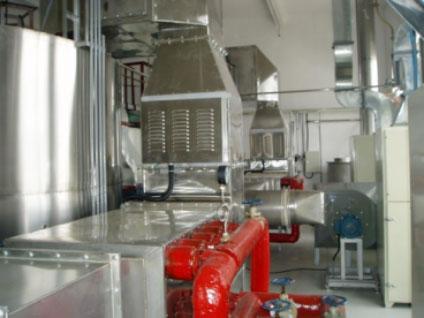

Air heating system: it can be used to provide hot air for drying. The heating system can adopt petroleum, natural gas, steam or electrical heating system.

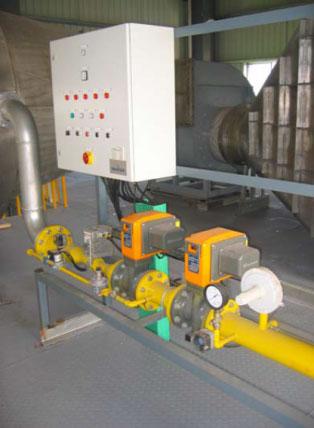

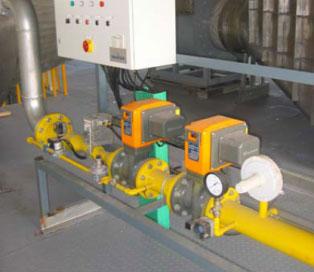

Direct-fired combustor control assembly-

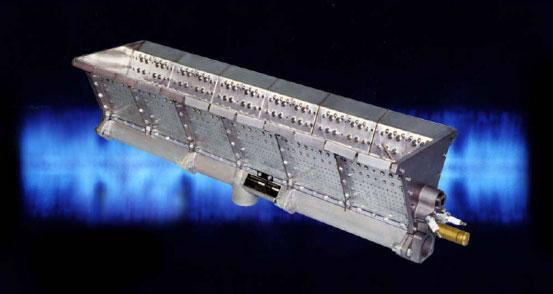

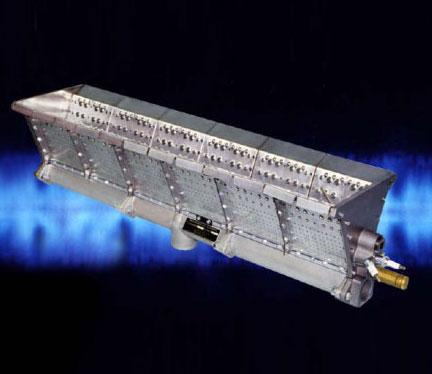

Direct-fired combustor nozzle

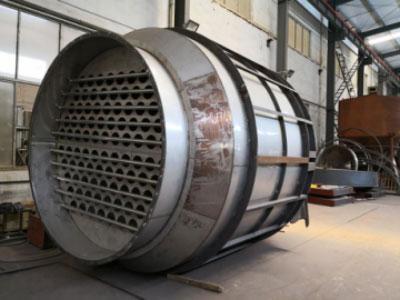

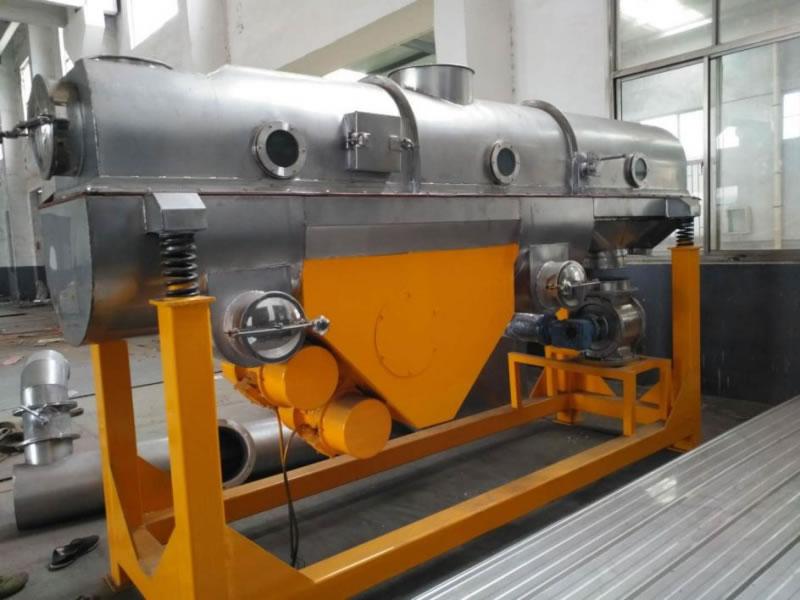

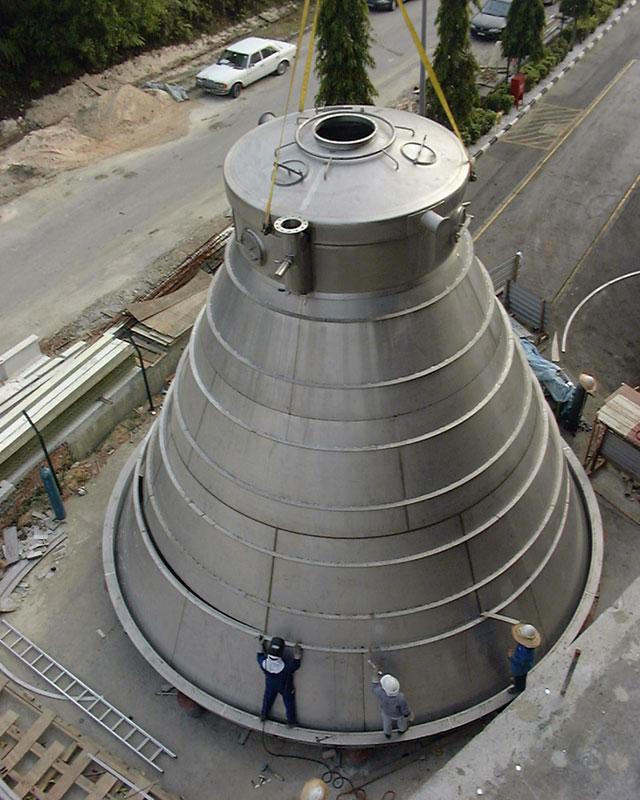

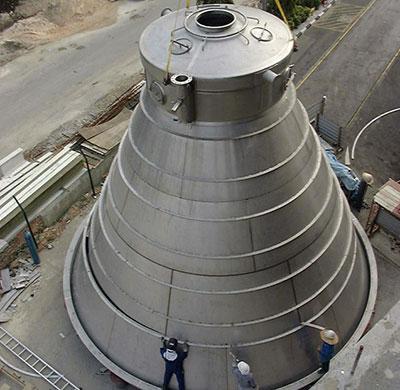

Drying tower: cylindrical tower which is equipped with a fluid bed at the cone bottom.
Exhaust system:
Cloth bag filter
Powder processing device
