Spray Dryer

Spray drying is a continuous processing method for over 150 years, which is used to produce free-flowing dry powder from any type of liquid or slurry feed directly with a hot gas, especially applicable for drying thermally sensitive material. Spray dryer is widely used across many industries such as food, beverage, chemical, ceramic materials, pigment, pharmaceutical and agro alimentary industries.

Spray drying system:

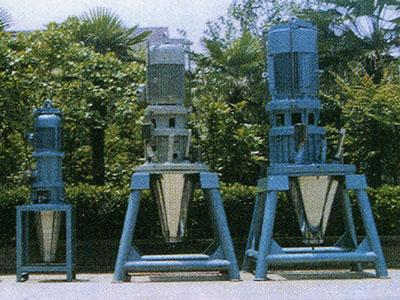

The spray drying equipment dries granular powders from liquid solutions to achieve a variety of industrial applications. Spray dried powder is made by rapidly drying the liquid or slurry with a hot air stream. The liquid or slurry is distributed through a rotary atomizer or spray nozzle to the chamber. The fine powder generated by the first stage drying can be recycled in continuous flow either at the top of the chamber or at the bottom, inside the integrated fluidized bed.

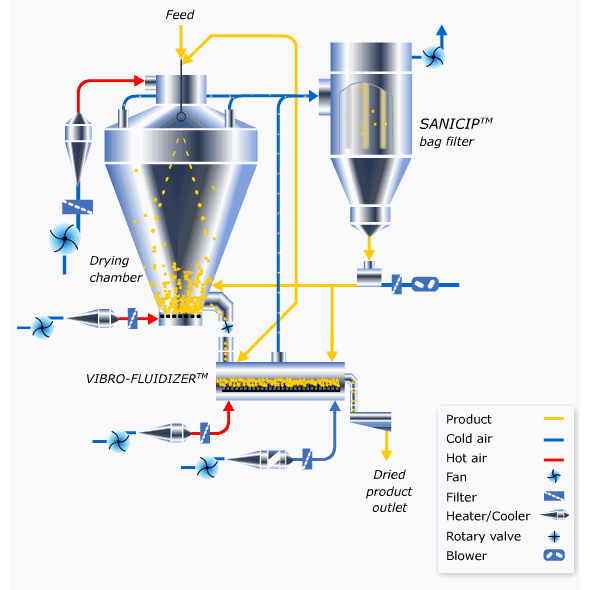

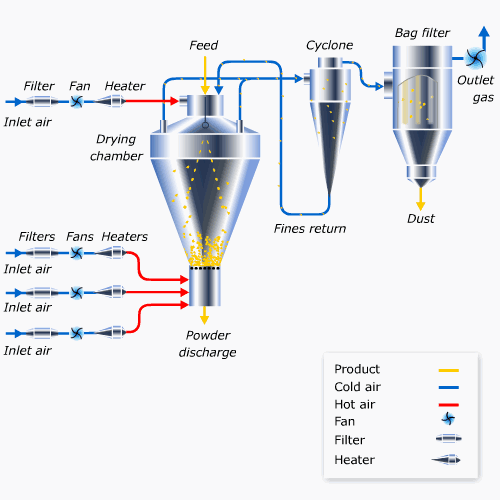

Process flow

FSD Small Scale
MSD (Multi Stage Dryer) / FSD

Main applications:

Dairy products
Food and beverage
Instant tea and instant coffee
Flavors, colorings and plant extracts
Milk and egg products
Plastics, polymers and resins
Soaps and detergents
Protein, Cellulose
Pharmaceutical Particles
Carbohydrates and similar products

Advantages:

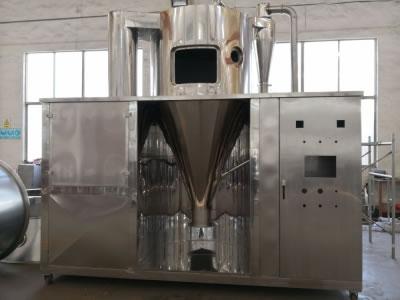

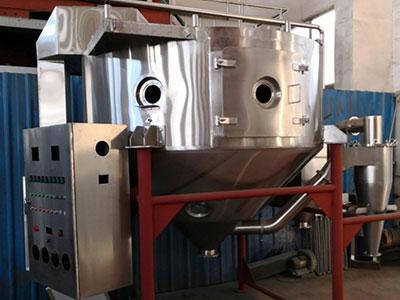

Suitable for aseptic pharmaceutical processing and ceramic powder production.
Shortly drying times up to several seconds
Continuous controlled process
Fast free flowing speed
Produces fairly uniform particle sizes
Final product maintains the physical and chemical properties.
Application range is wide
Automated WIP, CIP and SIP systems can be applied to spray dryers without difficulty.

We have worked on several types of spray drying equipment installed in many countries. Our spray dryers include the following:

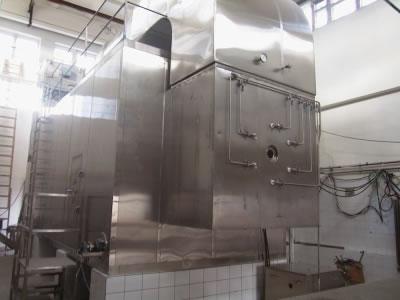

Horizontal type spray dryer
Pilot and small scale drying plant
Open cycle spray dryer

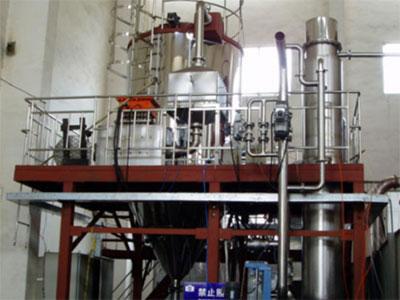

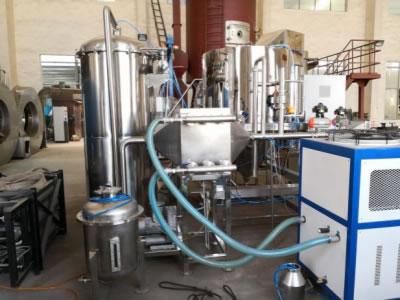

Closed circuit spray dryer
Single stage spray dryer
Two or multi stage spray dryer
Cyclone collection spray dryer
Secondary collection spray dryer
Partially-closed circuit spray dryer
Pressurized spray dryer

We are a specialist in the design and manufacturing of fluid bed dryer/granulator, spray dryer and other processing equipment for a variety of industries. Our company is established in 1965. Our design consistently meets our customers’ expectations for product quality, cost efficiency and low maintenance costs. According to the business requirements of our clients’ industry, we can provide full service such as drying and granulation production line design, manufacturing, installation, training and aftersales maintenance. Up to now, we have provided numbers of successful projects in different industries involving pharmaceutical industry, food industry, chemical industry, and agro alimentary industry. We understand what you need and know how to execute the project. We can partner with you to ensure compliance, contact us today.
