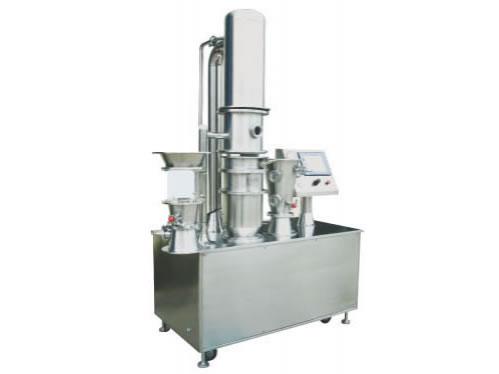

Lab Granulation Coating Machine

The lab granulating coating machine is a multifunctional equipment which combines the following processing functions such as drying with fluid bed, spray drying, granulating with fluid bed, vortex granulating, vortex coating, bottom spray coating, granulating with rotary bed etc.

This machine can carry out multiple kinds of processing operations. It is suitable for health care product, traditional Chinese medicine capsule, capsule for influenza, antibiotics granulating, pelletizing and coating in industries such as medicine, food and chemical industry etc.

Parameters

Item			Machine type
Name		Unit	3	5	10	15	30
Vessel diameter		mm	400	550	700	800	1000
Production capability		kg/ batch	0.75-3	1.2-5	2.5-10	3-15	7.5-30
Fan power		kw	3	4	5.5	7.5	7.5
Steam	Intensity of pressure	Mpa	0.4-0.6
Steam	Consumption	kg/h	Electricity 9KW	12	50	75	100
Compressed air	Intensity of pressure	Mpa	0.6
Compressed air	Consumption	m³ /min	0.3	0.35	0.55	0.6	0.9
Noise		dB	The fan is isolated so the noise is less than 75 dB.

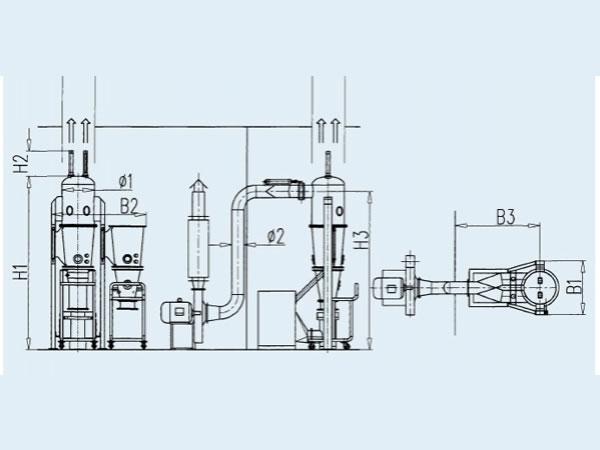

Main machine dimension		H 1 (mm)	1950	2260	2610	3170	3500
		H 2 (mm)	310	340	340	490	590
		H 3 (mm)	1750	2030	2410	2960	3300
		¢ 1(mm)	400	550	700	1000	1200
		¢ 2(mm)	150	180	250	250	280
		B 1 (mm)	660	1050	1160	1460	1660
		B 2 (mm)	1200	1650	1880	2480	2880
		B 3 (mm)	880	950	1250	1400	1500

Note: for the technical parameter table of the lab granulating coating machine, please take the information of multifunctional pellet coater as reference.

This kind of lab granulating coating machine has many functions such as drying, granulating, pelletizing and coating etc. It can be used to produce large particle electuary of 10-30 meshes. In this page, we displayed 5 kinds of lab granulating coating machines. If you want to learn more about one type of product, please tell us the specific model. We will provide you with more detailed information of the equipment. If there is no coating machine which can meet your requirements, you can tell us your demands. And we will make improvements on the base of the existing types so that it can meet your requirements.
