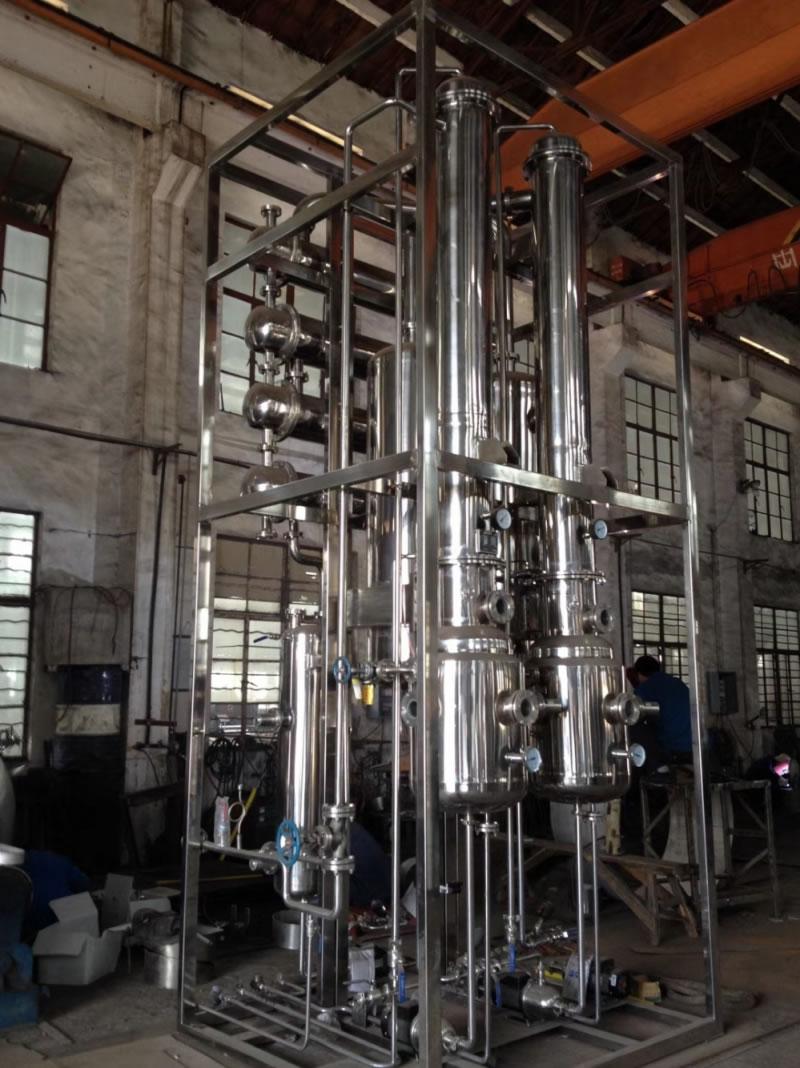

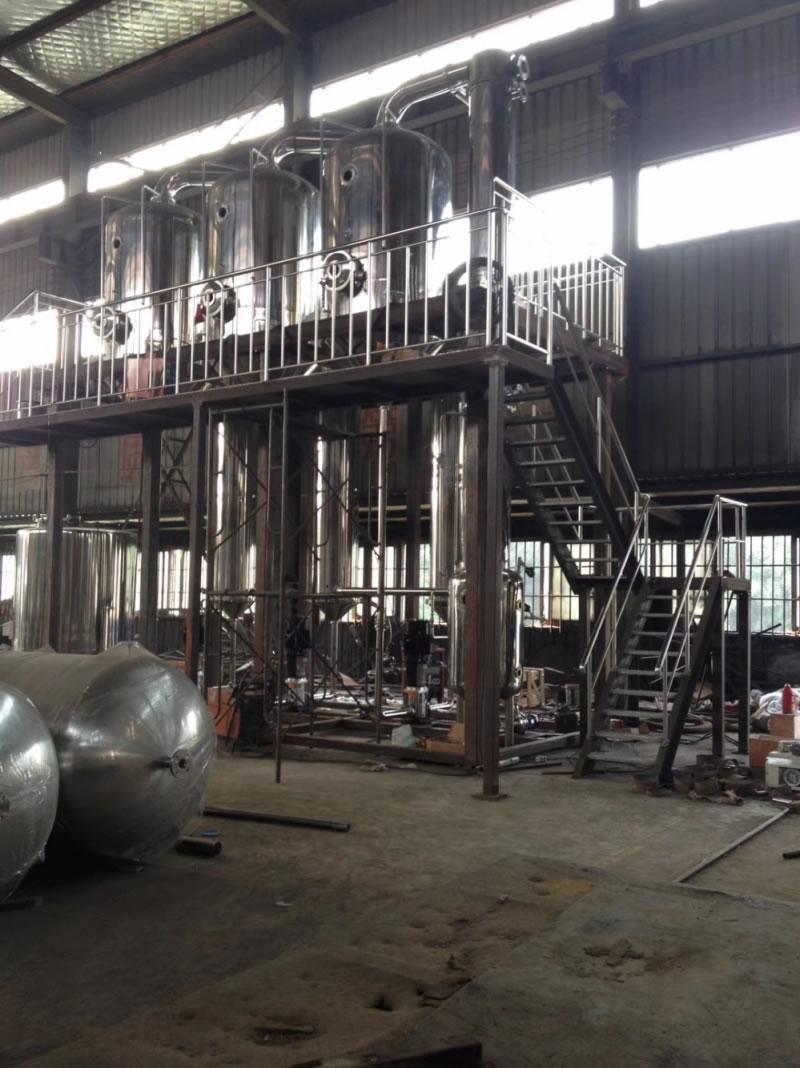

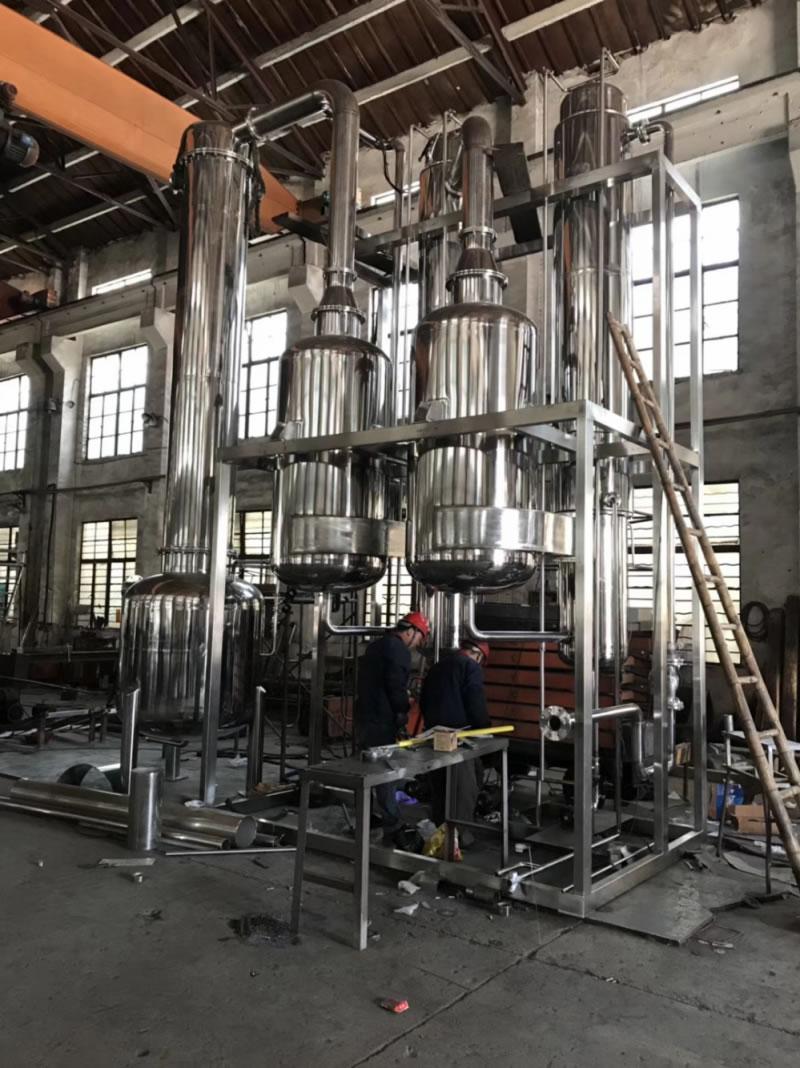

Multifunctional Extraction and Concentration Unit
The multifunctional extraction and concentration unit can be used for Chinese medicine, fruit juice and some other materials extraction, concentration and recovery of organic solvent in colleges and universities, scientific research institutions, hospitals, pharmaceutical factory and food industry. It is suitable for extraction and concentration (water and organic solvent) of Chinese medicine and natural products and recovery of volatile aromatic oil. The concentration ratio can be from 1.1-1.38. The multifunctional extraction and concentration unit is generally make up of extraction tank, condenser, cooling unit, collector, extraction tank filter, tubular heater, evaporator, recovering condenser, recovering cooling unit, collection tank, stainless steel machine rack, connecting pipe valve, instruments etc.
| Type | Extraction tank | External circulation evaporator | ||||||
| Item | Volume (L) | Interlayer working pressure (MPa) | Vessel working pressure(MPa) | Working pressure(MPa) | Tank vacuum degree (MPa) | Rated evaporation quantity (kg/h) | Lifting power (KW) | Vessel type |
| DTS-50 | 65 | 0.15 | Normal pressure | 0.25 | -0.018 | 10 | 0.25 | Normal pressure |
| DTS-100 | 125 | 0.15 | Normal pressure | 0.25 | -0.018 | 40 | 0.25 | A grade |
| DTS-200 | 250 | 0.15 | Normal pressure | 0.25 | -0.018 | 60 | 0.25 | |
| DTS-300 | 375 | 0.15 | Normal pressure | 0.25 | -0.018 | 80 | 0.25 | |
| DTS-400 | 475 | 0.15 | Normal pressure | 0.25 | -0.018 | 100 | 0.25 | |
| DTS-500 | 580 | 0.15 | Normal pressure | 0.25 | -0.018 | 150 | 0.37 | |
We are a specialist in the design and manufacturing of fluid bed dryer/granulator, spray dryer and other processing equipment for a variety of industries. Our company is established in 1965. Our design consistently meets our customers’ expectations for product quality, cost efficiency and low maintenance costs. According to the business requirements of our clients’ industry, we can provide full service such as drying and granulation production line design, manufacturing, installation, training and aftersales maintenance. Up to now, we have provided numbers of successful projects in different industries involving pharmaceutical industry, food industry, chemical industry, and agro alimentary industry. We understand what you need and know how to execute the project. We can partner with you to ensure compliance, contact us today.
-
