Vacuum Continuous Freeze Dryer

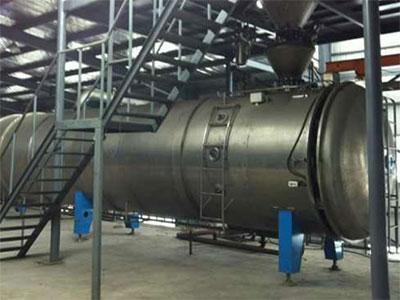

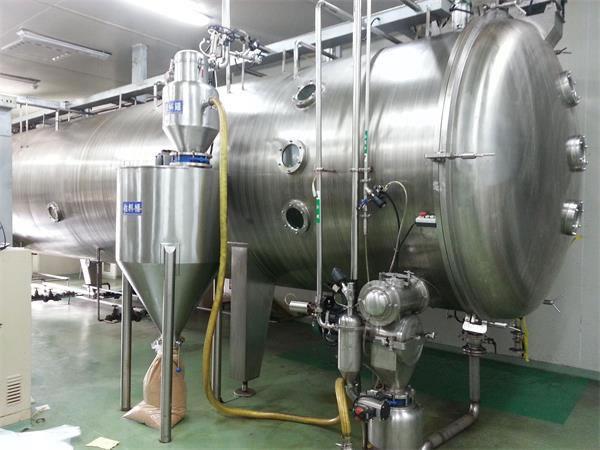

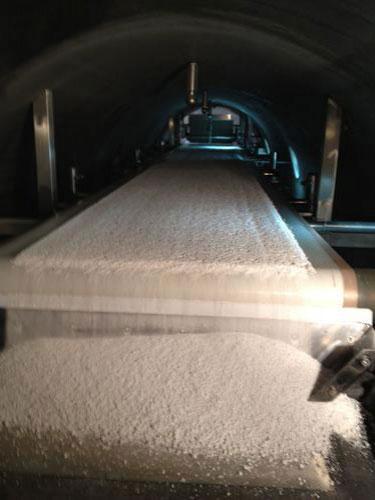

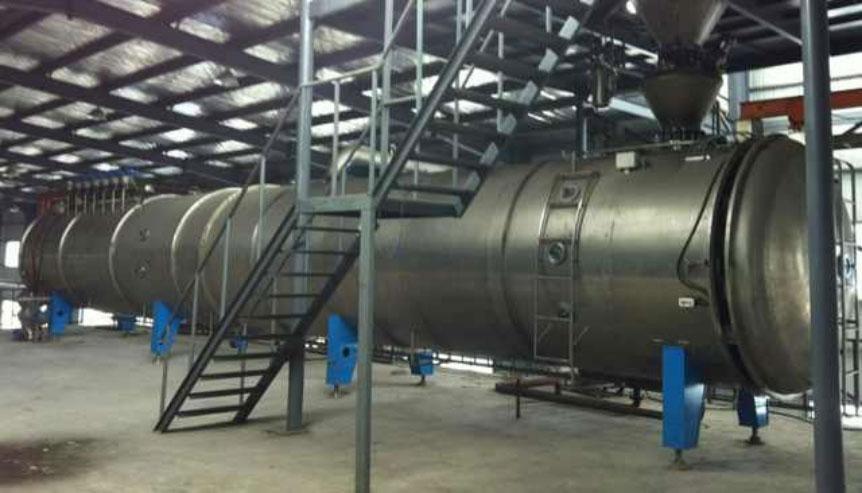

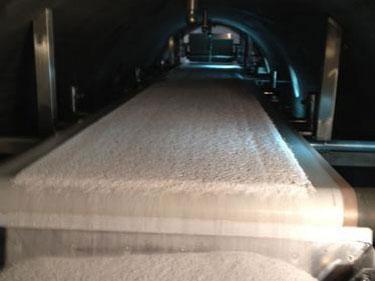

Vacuum continuous freeze dryer is a fully enclosed vacuum belt type drying equipment with continuous material feeding and discharging.
The vacuum continuous freeze dryer can be used for raw material drying such as various solid matter, crystal, particle, powder, granule, fruits etc. It is suitable for traditional Chinese medicine, western medicine, food, chemical industries etc.
| Type | Diameter mm | Length mm | Height mm | Heating area m2 | Heating temperature ℃ | Feeding material water content % | Dry material water content % | Water evaporation capacity Kg/h | Associated heat source | Main machine power kw |
| ZD 15-3 | 1400 | 7500 | 3000 | 15 | 20-150 | 20-80 | 0.3-5 | 8-12 | Steam or hot water or hot oil | 6.00 |
| ZD 35-5 | 1600 | 9800 | 3300 | 35 | 18-25 | 8.00 | ||||
| ZD 50-5 | 2200 | 11500 | 3800 | 50 | 25-35 | 12.00 | ||||
| ZD 70-5 | 2200 | 13500 | 3800 | 70 | 35-45 | 12.00 | ||||
| ZD 80-5 | 2200 | 15500 | 3800 | 80 | 40-60 | 12.00 | ||||
| ZD 120-7 | 2300 | 16000 | 4200 | 120 | 70-90 | 15.00 | ||||
| ZD 160-9 | 2500 | 16000 | 4500 | 160 | 90-120 | 17.00 | ||||
| ZD 220-11 | 2800 | 16000 | 4500 | 220 | 120-150 | 19.00 |
The vacuum continuous freeze dryer produced by JiangSu Xiandao adopts vacuum low temperature drying. The material feeding, discharging and crushing and forming are all carried out under vacuum condition so that it can avoid chemical changes caused by contacting with air. Because of the adopting of pipelines, this dryer can carry out multiple drying to further improve drying efficiency. Meanwhile, it can reduce production cost.
If you are interested in this dryer, please contact us. We can provide you with more detailed product performance and function introduction. If you have special requirements on the product, you can tell us your demands. We will try our best to improve the design for you.
