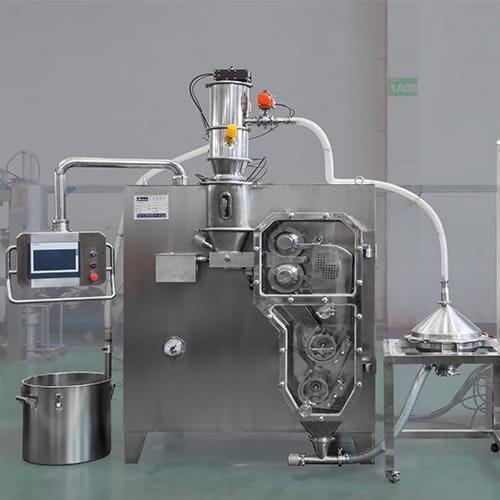

Granulator with Dry Rolling Compactor

Dry Granulation Roll Compactor, LG Series

The granulator with dry rolling compactor adopts extruding, crushing and granule processing to produce dry particles required.

The following are 7 types of granulator with dry rolling compactor for you to choose from. We can also make different improvement on the base of specific types.

Item/type		LG-40	LG-70	LG-100	LG-150	LG-200	LG-250	LG-300
Max production capability（kg/h）		40	70	100	150	200	250	300
Grain fineness（mesh）		10~30
Total power（kW）		6.87	9.52	12.97	14.97	14.97	21	21
Outline dimension（mm）	L	900	1100	1450	1450	1450	1500	1500
	W	800	1000	1450	1500	1550	1600	1650
	H1	800（according to the customers' requirements）
	H2	1200	1400	1600	1600	1600	1800	1800
	H3	1000（according to the customers' requirements）
Complete machine weight（kg）		500	600	1000	1200	1350	1800	2000

Advantages

Production efficiency
1. The air extractor can evacuate the hidden air from the material so that the particles can be more compact and granulating rate can be higher after rolling treatment.

2. According to the experiment and production practice, the granulating rate of the material can be up to 80%~90%.

Health of operator
The sealing performance of the equipment is good so that there will be no dust leakage during the production, thus ensuring the operators’ safety.

Operation of the equipment
1. Easy disassembly: the disassembly of the granulator only needs 3 mins, and the assembly only needs 5 mins. While the assembly and disassembly of similar products from other companies requires about 30 mins.

2. There are only a few kinds of nut of different specifications for the assembly of the whole granulator, so we need only a few kinds of tools required for the installation and disassembly. This means that the application is quite convenient.

Outline structure
1. The control cabinet and the main machine adopts integrated mounting so that it occupies small floor area.

2. The installation of the granulator is quite simple, so the installation personnel only needs to connect the general power and the electric cabinet with cables.
