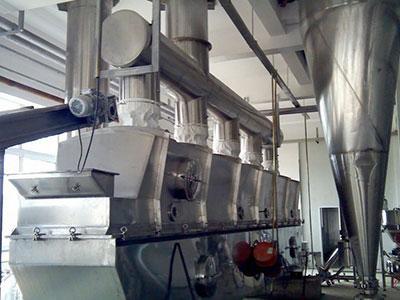

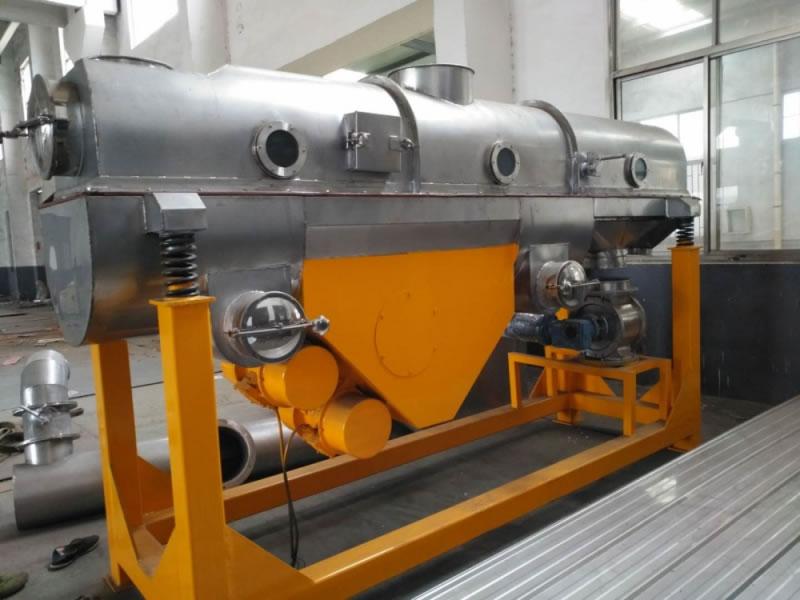

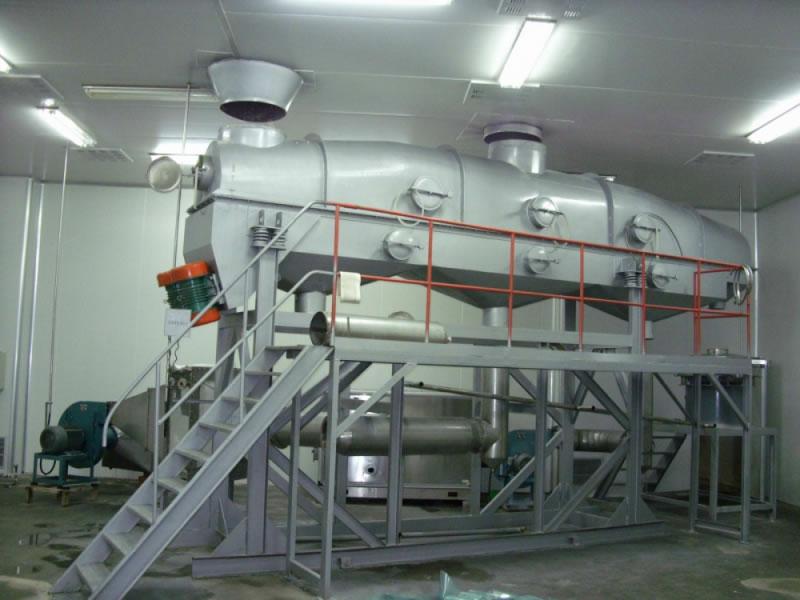

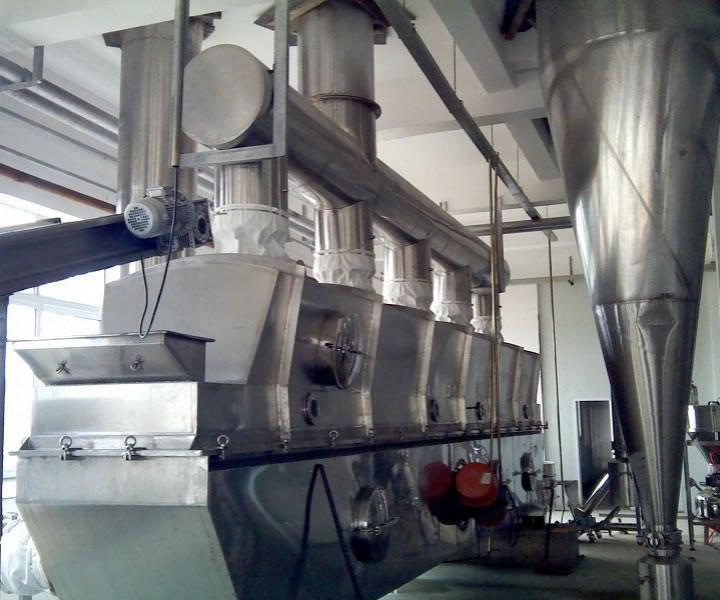

Vibrating Fluid Bed Dryer

Introduction

The material enters the vibrating fluid bed dryer from the inlet. And it will continuously move along the horizontal direction under the action of the vibration force. The hot air will pass through the fluid bed from the bottom to realize heat exchanging with wet material. Then the wet air will be discharged from the air outlet after dust removing carried out by rotary separator. And the dry material will be discharged from the material discharge opening.

Application

The vibrating fluid bed dryer is suitable for processing of various disperse powder material in industries such as light industry, chemical industry, food industry, agriculture and sideline industry, pharmaceutical industry etc. It can also be used for material cooling and humidifying.

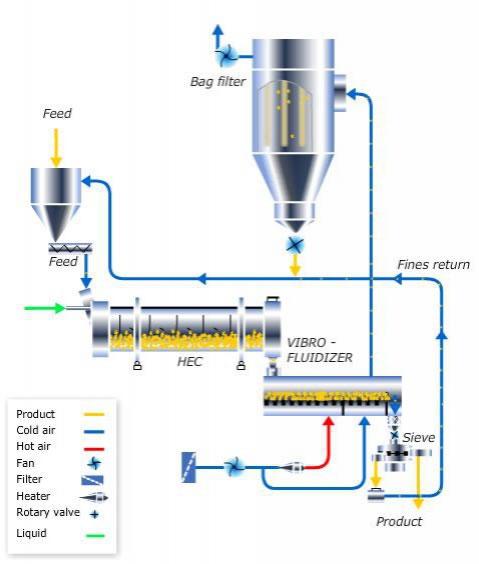

Process flow

Parameter

Model (ZLG)	Bed area （O）	Inlet Temp. （℃）	Outlet Temp. （℃）	Moisture evaporation（kg/h）	Vibration motor
Model (ZLG)	Bed area （O）	Inlet Temp. （℃）	Outlet Temp. （℃）	Moisture evaporation（kg/h）	Model	Power（k w）
3×0.3	0.9	70-140	40-70	20-35	ZDS31-6	0.8×2
4.5×0.3	1.35	70-140	40-70	35-50	ZDS31-6	0.8×2
4.5×0.45	2.025	70-140	40-70	50-70	ZDS32-6	1.1×2
4.5×0.6	2.7	70-140	40-70	70-90	ZDS32-6	1.1×2
6×0.45	2.7	70-140	40-70	80-100	ZDS41-6	1.5×2
6×0.6	3.6	70-140	40-70	100-130	ZDS41-6	1.5×2
6×0.75	4.5	70-140	40-70	120-140	ZDS42-6	2.2×2
6×0.9	5.4	70-140	40-70	140-170	ZDS42-6	2.2×2
7.5×0.6	4.5	70-140	40-70	130-150	ZDS42-6	2.2×2
7.5×0.75	5.625	70-140	40-70	150-180	ZDS51-6	3.0×2
7.5×0.9	6.75	70-140	40-70	160-210	ZDS51	3.0×2
7.5×1.2	9	70-140	40-70	200-260	ZDS51	3.0×2

Model (ZLG)	Length	Width	Total width	Height of down bed	Height of upper bed	Total height	Dead weight（kg）
3×0.3	3000	300	1350	900	430	1650	1250
4.5×0.3	4500	300	1350	900	430	1650	1560
4.5×0.45	4500	450	1550	950	430	1700	1670
4.5×0.6	4500	600	1650	950	430	1700	1910
6×0.45	6000	450	1650	950	430	1700	2100
6×0.6	6000	600	1700	1000	500	1700	2410
6×0.75	6000	750	1850	1000	600	1850	2340
6×0.9	6000	900	3000	1000	600	1850	3160
7.5×0.6	7500	600	1850	1000	600	1850	3200
7.5×0.75	7500	750	2000	1000	600	1850	3600
7.5×0.9	7500	900	2100	100	600	1850	4140
7.5×1.2	7500	1200	2500	1150	800	2050	5190

The vibrating fluid bed dryer produced by JiangSu Xiandao adopts fully enclosed structure so that it can protect the material from secondary pollution caused by contacting with air.

Because of the enclosed structure, the material will be heated uniformly. The heat can be recycled, thus, comparing with the normal drying equipment, it can save energy by 30%.
